Weight:5.1 pounds (2.31 kilograms)

Power Capacity:12 kW

Efficiency:95%

Connectivity:SERCOS, DPI connectivity

Safety Feature:ISO 13849-1 PLe/SIL3-certified Safe-Torque Off (STO) functionality

Operating Voltage:200 to 230 Volts AC

Converter Power:6 kW

Frequency Range:47 to 63 Hertz

Input Voltage RMS:195 to 264 Volts

Output Voltage:325 Volt DC nominal bus

Current:19 A on common-bus follower

Short-Circuit Current Rating:200,000 Amps symmetrical

Data Retention:20 years

Input/Output Interfaces:230 Volts rated digital I/O

Interface Standards:SERCOS, EtherNet/IP

Module Type:Rail mount

Operating Temperature:0 to 50 degrees Celsius

Power Dissipation:@ 20% utilization: 14 Watts, @ 100% utilization: 46 Watts

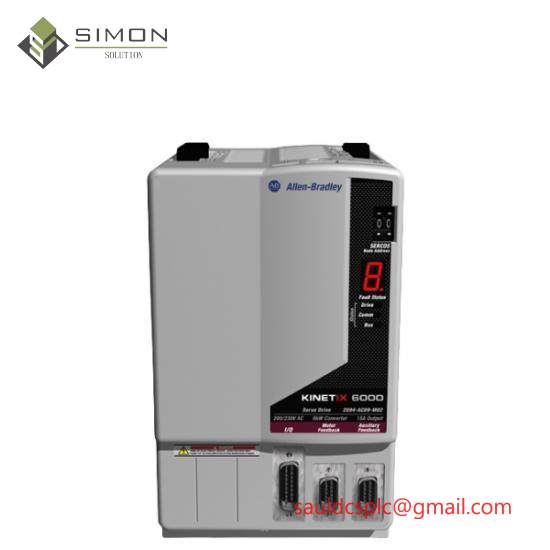

    The Allen-Bradley 2094-AC09-M02 Integrated Axis Module is an integral component of the Kinetix 6000 product family, engineered to enhance the performance and reliability of motion control systems in various industrial environments.

    Equipped with a wide range of connectors including Contactor enable (CED), DC bus/AC input power (IPD), Control power (CPD), Motor power (MP), Motor/resistive brake (BC), and I/O (IOD), this module facilitates seamless integration with existing systems.

    The inclusion of Safe-Torque Off (STO) functionality ensures safety compliance and adherence to ISO 13849-1 PLe/SIL3 standards, providing an additional layer of protection against hazardous situations.

    With a power capacity of 12 kW and an efficiency of 95%, the 2094-AC09-M02 offers unparalleled performance and energy savings, making it ideal for high-demand applications requiring precision and reliability.

    This module is compatible with ControlLogix controllers, enabling direct communication via the SERCOS interface and supporting advanced control protocols like EtherNet/IP for enhanced system integration and flexibility.

    Featuring a compact yet rugged design, the 2094-AC09-M02 is easy to install and maintain, ensuring minimal downtime and maximum operational efficiency in industrial settings.
