Operating Voltage:12 to 48V DC

Data Rate:10/100 Mbps

Network Protocol:ControlNet

Connector Type:RJ45

Temperature Range:-40°C to +70°C

Power Consumption:1.5W

Dimensions:48.2mm x 51.8mm x 26.5mm

Weight:0.04kg

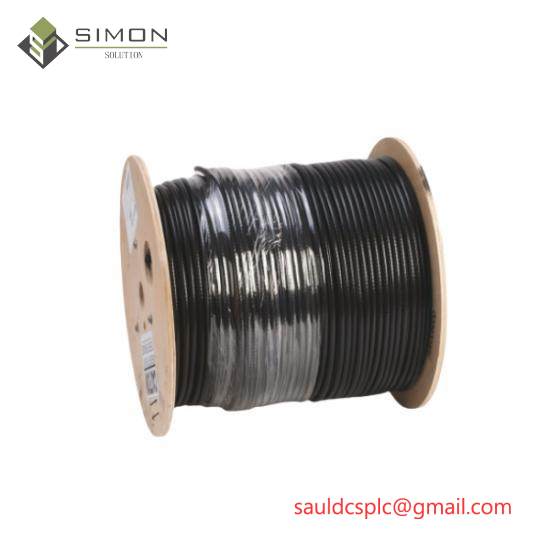

    The 1786-RG6F ControlNet RG-6 module is engineered for rugged industrial applications, ensuring reliable operation in harsh conditions. Its robust design and high-speed communication capabilities make it an ideal choice for real-time data exchange in manufacturing, process control, and automation sectors.

    Featuring compatibility with ControlNet protocol, this module supports seamless integration with a wide range of Rockwell Automation systems, including programmable logic controllers (PLCs), motion controllers, and human-machine interfaces (HMIs). It enhances system efficiency by enabling quick data transfer and reducing network latency.

    Built for long-distance communication, the 1786-RG6F can span up to 1200 meters without significant signal degradation, making it suitable for large-scale factory layouts or distributed control systems. Its support for multiple addresses allows for flexible configuration and scalability, accommodating diverse network architectures.

    With a temperature range of -40°C to +70°C, the module is designed to withstand extreme environmental conditions, ensuring continuous operation in cold climates or during hot summer months. Its power consumption is kept low at a maximum of 2.5 watts, which reduces energy costs and minimizes heat generation within the control system.

    Certified for indoor use with an IP20 rating, the 1786-RG6F ensures protection against dust and limited water splashes, safeguarding against potential damage from dust or accidental water exposure. This feature is crucial for maintaining system integrity in environments where dust accumulation or occasional water ingress might occur.
