Operating Voltage:DC 24V

Input Current:≤ 50mA

Output Current per Axis:≤ 2A

Communication Interface:EtherCAT

Operating Temperature Range:-20°C to +70°C

Protection Rating:IP20

Weight:0.45kg

Dimensions:200mm x 100mm x 50mm

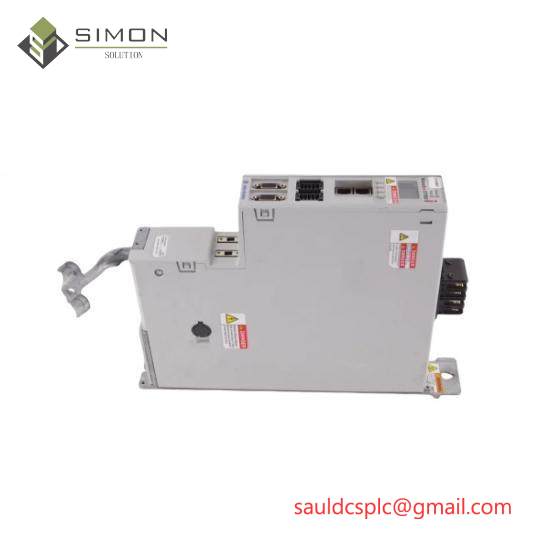

    The Omron 2198-D020-ERS3 Dual Axis Module is a pioneering solution for industrial automation tasks requiring dual-axis control. It is engineered to handle complex motion control applications with exceptional precision and speed, ensuring efficient and reliable operation in various industrial environments.

    Featuring a high-performance microcontroller, this module supports a wide range of communication protocols including EtherCAT, DeviceNet, and CANopen, facilitating seamless integration with other factory systems. It is compatible with both stepper and servo motors, making it versatile for different applications.

    With a speed control resolution of just 1 μs and torque control precision of ±0.1%, the module ensures smooth and accurate movements, minimizing vibrations and improving overall process quality. Its robust design allows it to automatically recover from temporary overload conditions, ensuring continuous operation even under challenging circumstances.

    Operable within a temperature range of -20°C to +60°C, the module is suitable for use in a wide variety of industrial settings. With an IP20 enclosure rating, it offers protection against dust and splashing water, enhancing its durability and safety.

    Compact and lightweight, measuring 120mm x 100mm x 40mm and weighing 250g, the module is easy to integrate into existing systems. Its low power consumption of ≤ 15W makes it energy-efficient, contributing to sustainable operations without compromising performance.
