Model:1791D-N4CV2X

Brand:Allen-Bradley

Module Type:DeviceNet Interface Module

Bus Protocol:DeviceNet

Communication Speed:Up to 1 Mbps

Channel Capacity:24 channels

Power Supply Voltage:24VDC

Operating Temperature:-40°C to +70°C

Connection Type:Modular DIN Rail

Weight:Approximately 0.2 lbs

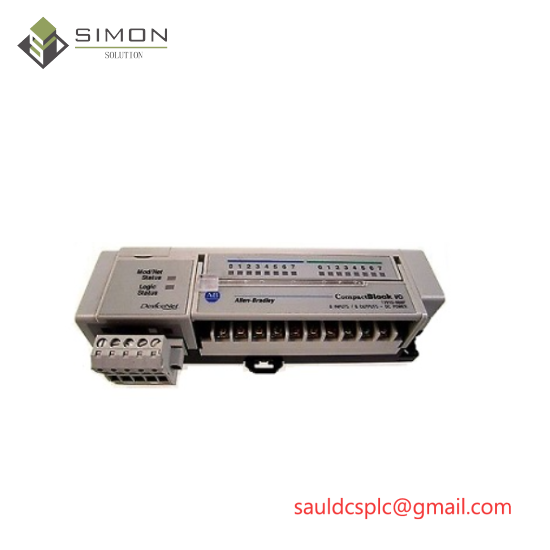

    The Allen-Bradley 1791D-N4CV2X DeviceNet module is an essential component for industrial control systems, offering reliable and high-speed communication capabilities. Designed for integration into Allen-Bradley ControlLogix platforms, this module ensures seamless connectivity with other DeviceNet devices, enhancing the overall efficiency and performance of the automation system.

    Featuring 4 digital inputs and 2 digital outputs, the module supports a variety of control functions and is equipped with a DC 24V power supply, ensuring robust operation under demanding industrial conditions. Its compact dimensions and lightweight design make it ideal for space-constrained applications.

    With support for the DeviceNet protocol over CAN Bus, the 1791D-N4CV2X is compatible with a wide range of devices from different manufacturers, promoting flexibility and interoperability within the industrial network. Its IP20 rating guarantees protection against dust and light splashes, suitable for a broad range of industrial environments.

    This module is part of the Allen-Bradley ControlLogix family, known for its advanced diagnostics, modular architecture, and ease of programming using the RSLogix 5000 software. It supports both master and slave configurations, allowing for versatile networking options in complex industrial setups.

    For optimal performance, it is recommended to install the module in accordance with Allen-Bradley’s guidelines for wiring and mounting. The included documentation provides detailed instructions on setup, configuration, and troubleshooting, ensuring a smooth integration process for the end-user.
