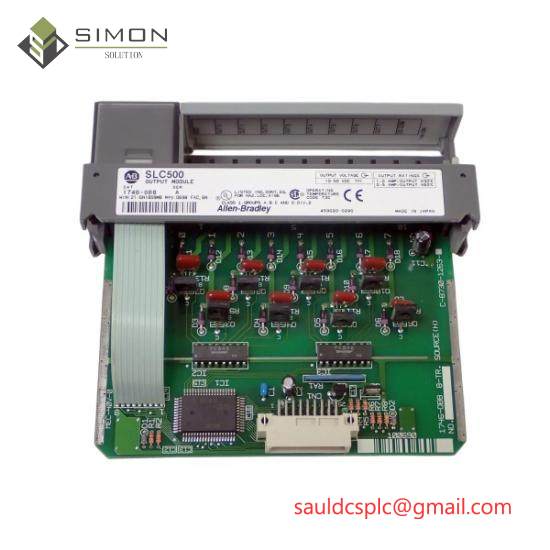

Model:1746-OB8

Manufacturer:Allen Bradley

Type:Output Module

Subtype:SLC 500

Channels:8

Output Type:Digital

Voltage Range:5 – 50 VDC

On-State Voltage Drop:1.2 V

Off-State Output Leakage:1 MA

Load:1 MA

Current Rating:Continuous: 0.25 A at 60°C per output, Total: 8 A at 60°C per module

Isolation:Communication circuits: 500 VDC, Backplane: 1500 VAC

Environmental Conditions:Temperature: 0 – 60°C, Humidity: 5 – 95%

Enclosure:Open Type

Mounting:Chassis

Enclosure Protection:IP20

    The AB 1746-OB8 Output Module is a critical component in any SLC 500 system, ensuring high-performance and reliability in controlling various industrial processes.

    Featuring an advanced design for precise analog output, this module supports a wide range of applications requiring accurate control signals, from temperature regulation to speed control in machinery.

    With its robust temperature rating and durable construction, it’s suitable for harsh industrial environments, ensuring continuous operation under extreme conditions.

    The module’s versatile communication protocol compatibility allows seamless integration with existing automation systems, streamlining the setup process and enhancing operational efficiency.

    Easy to install with its panel mount design, the AB 1746-OB8 ensures a secure and convenient connection to your system, minimizing downtime and facilitating maintenance.
