Model Type:Discrete Output Module

No. of Channels:16

Voltage Category:24VDC

Output Voltage Range:20.4-26.4VDC

Current Rating:0.25A per channel at 60°C

Isolation:Communication circuits: 500VDC, Backplane: 1500VAC

Enclosure Type:Open Type

Mounting:Chassis

Temperature Rating:0-60°C

Environmental Conditions:5%-95% non-condensing

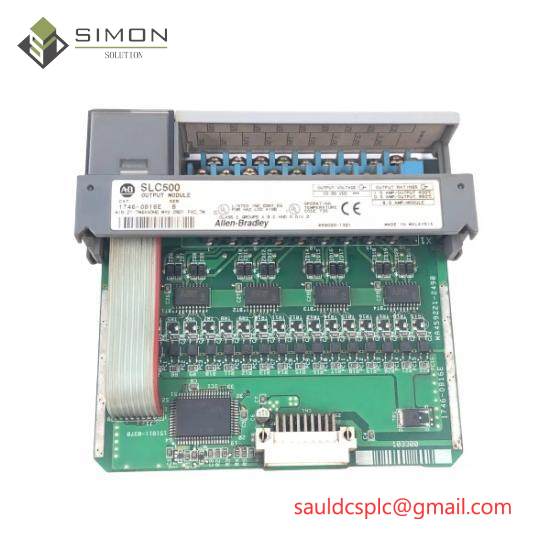

    The Allen Bradley 1746-OB16E Protected Output Module is engineered to withstand harsh industrial conditions, ensuring consistent performance in a wide range of environments.

    Featuring a robust design, this module supports 16 discrete output channels, each capable of sourcing or sinking current up to 0.25 A at 60°C, providing versatility for various control tasks.

    With an operating voltage range of 20.4 to 26.4VDC, the module ensures compatibility with a broad spectrum of power supplies, making it suitable for diverse industrial applications.

    Equipped with advanced isolation technology, the 1746-OB16E guarantees high reliability by separating input and output signals from the module’s internal circuits, minimizing interference and protecting against electrical surges.

    The open-type enclosure facilitates easy access for maintenance and configuration, while the chassis mounting option allows for efficient integration into existing systems, streamlining the setup process.
