Number of Channels:2 Input, 2 Output

Common Mode Voltage Range (Input):-20 To 20 V

Absolute Input Voltage (Input):+/- 7.5 VDC or 7.5 VAC RMS (Max)

Input Range (Current):-20 To 20 MA

Absolute Input Current (Max):-30 To 30 MA

Output Range (Voltage):-10 To 10 V – 1 LSB

Voltage Rating:Overvoltage Protection: 7.5 VAC RMS

Input Range (Voltage):-10 To 10 VDC – 1 LSB

Current Rating (Backplane):55 MA

Analog Resolution:High Resolution

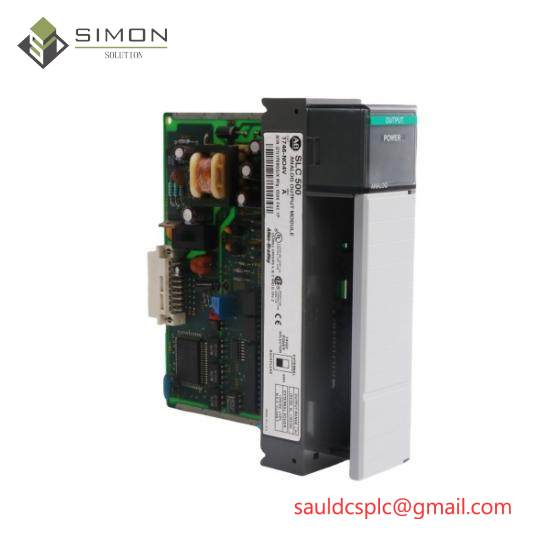

    Experience unparalleled precision and reliability with the Allen Bradley 1746-NO4V SLC 500 Output Module. This cutting-edge digital output device is engineered to deliver exceptional performance in even the most demanding industrial environments.

    Featuring four (4) high-performance channels capable of delivering voltage outputs from 10 to 50 volts DC, this module ensures efficient control over machinery and processes.

    With an on-state voltage drop of just 1.2 volts and a leakage current of 1 milliampere, the 1746-NO4V guarantees minimal power consumption and reduced heat generation, enhancing system efficiency.

    Designed for easy integration into existing control systems, this module supports seamless communication through its robust isolation capabilities, ensuring uninterrupted operation in noisy industrial settings.

    Engineered for durability and longevity, the open-type enclosure protects the internal components from dust, moisture, and other environmental hazards, making it suitable for outdoor and harsh industrial use.

    Backed by Allen Bradley’s commitment to quality and innovation, the 1746-NO4V is an ideal choice for automating complex operations, enhancing production throughput, and achieving optimal performance in your industrial applications.
