Operating Voltage:12-48 VDC

Input Current Range:0 to 32 A

Accuracy:±0.2% of reading ±1 count

Operating Temperature:-25°C to +60°C

Storage Temperature:-40°C to +85°C

Dimensions:65.5 x 42.5 x 24.5 mm

Connectivity:DB9 connector for RS-232 serial communication

Power Consumption:Typically < 1 W

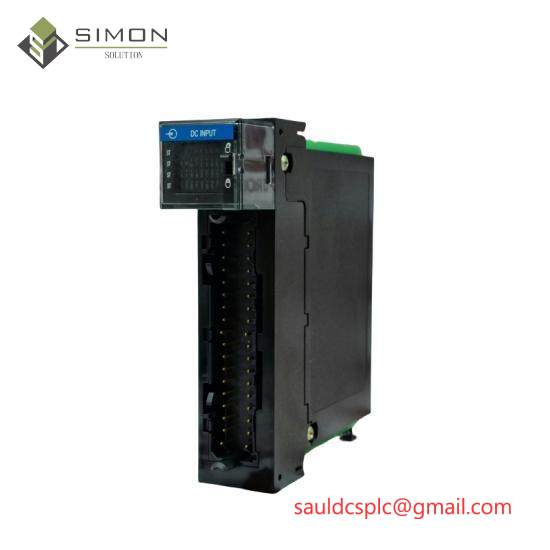

    The AB 1756-IB32 Industrial Control Module boasts an impressive array of 32 digital inputs, providing unparalleled flexibility and adaptability for diverse industrial automation tasks. Designed for seamless integration into existing systems, this module ensures reliable operation under demanding conditions.

    Featuring a robust and flexible communication cable, the module ensures efficient data transfer and minimal interference, making it ideal for complex industrial environments. Its wide operating voltage range ensures compatibility with various power sources, enhancing its versatility.

    Each input point is equipped with a maximum current capacity of 0.5 A at 60 °C (140 °F) and can be increased to 1.0 A at 30 °C (86 °F), ensuring accurate and responsive signal processing. This capability makes it suitable for handling a wide range of input signals from sensors and other devices.

    The AB 1756-IB32’s compatibility with 24V DC power supply ensures energy efficiency and reduced maintenance costs. Its maximum bus current draw of 200 mA ensures smooth operation without overloading the system, contributing to the overall longevity of the automation setup.

    For ease of installation and mounting, the module supports both DIN rail and panel mounting options, allowing for versatile deployment within various industrial settings. This feature ensures quick and efficient setup without compromising on the structural integrity of the automation system.
